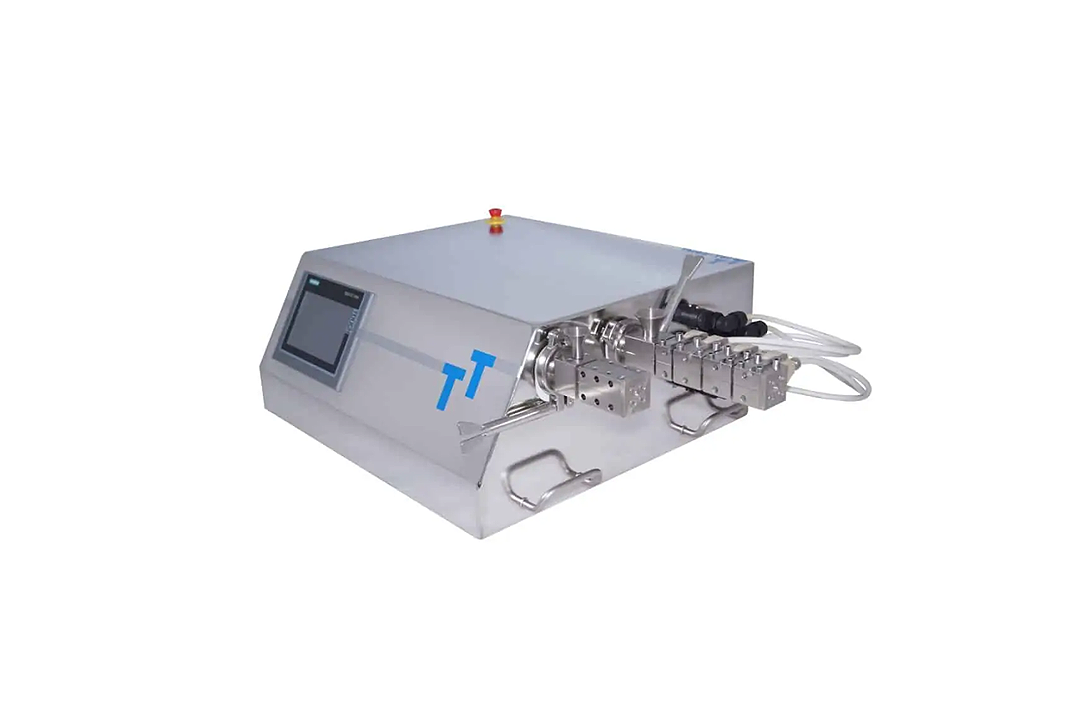

ZE 5-12 Hybrid Labratory Extruder
ENQUIREHybrid laboratory extruders are installed in the same housing as the standard models. They have the same performance data as the corresponding standard extruders, but as a combination device they also offer the choice of two different extruder sizes in one device. This means that the upscaling stage is already included. Three versions - all space-saving table-top models - are available, each with a choice of two screw diameters (5, 9 or 12 mm)
Specification
| Combinations (mm) | 5/9, 5/12, 9/12 |
| Max. Pressure | 200 (ZE 5) / 250 (ZE 9) / 250 (ZE 12) |
| Max. Torque (Nm) | 2.5 (ZE 5) / 14.5 (ZE 9) / 20 (ZE 12) |
| Max. Temperature | 230 °C (optionally 400 °C) |
| Cooling | Water / Air |
| Heating Zones | 1-8 |
| L/D | 15, 20, 25, 30, 40 |
| Heating time up to 100°C | 3 min (ZE 5) / 4 min (ZE 9) / 5 min (ZE 12) |
| Heating time up to 200°C | 7 min (ZE 5) / 10 min (ZE 9) / 14 min (ZE 12) |
The hybrid extruder offers the flexibility to change from a 5 mm to a 9 mm or 12 mm screw diameter within a few minutes. The two shafts are controlled via a single, central control panel. The application range of hybrid extruders is much wider than conventional extruders and is optimal for reproducible scale-up.
