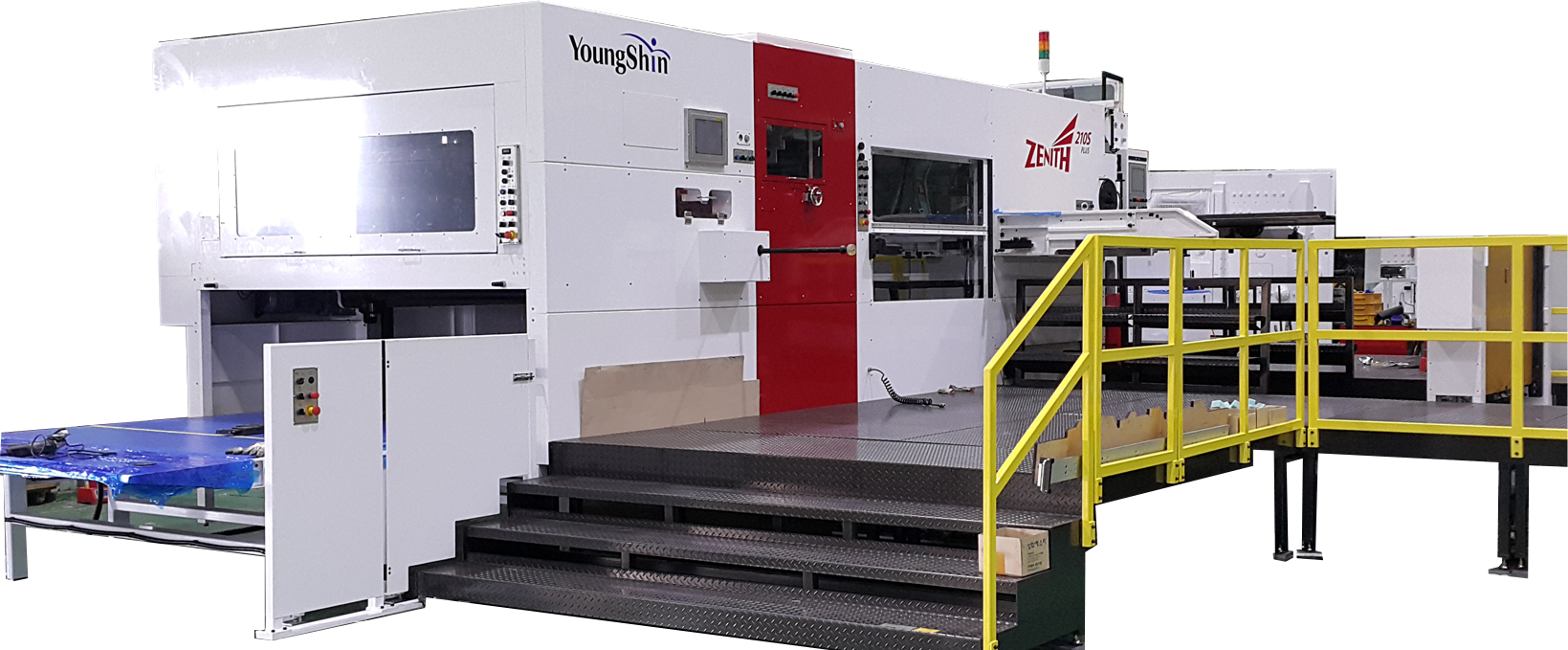

Young Shin: Zenith 210S
ENQUIREThe Young Shin ZENITH 210S Plus high-speed flatbed die cutter is engineered to handle a diverse array of applications with precision and efficiency. It is capable of processing single- and double-wall board corrugated, solid substrates such as micro flute, litho label and single-face laminated board, foam core, as well as plastic corrugated and paperboard as thin as 0.060 point. The machine features automatic gripping for sheets up to 11 mm in thickness and operates at speeds of up to 5,000 sheets per hour. Additionally, it supports a maximum sheet size of 2100 x 1500 mm, making it a versatile solution for high-volume, high-quality die cutting.
Key Features
| Maximum Sheet Size | 2100 x 1500 mm |
| Minimum Sheet Size | 800 x 600 mm |
| Maximum Cutting Size | 2100 x 1485 mm |
| Inside Chase | 2160 x 1531 mm |
| Minimum Gripper Margin | 15 mm |
| Cutting Pressure | 500 Tons |
| Sheet Thickness | Corrugated Board (E, B, A, AB Flute) : 1.5 ~ 11 mm |
| Maximum Speed | 5000 sph |
| Total Weight | 53 Tons |
