WAB: DYNO-MILL KD
Highly Flexible Disc Agitator Bead Mill

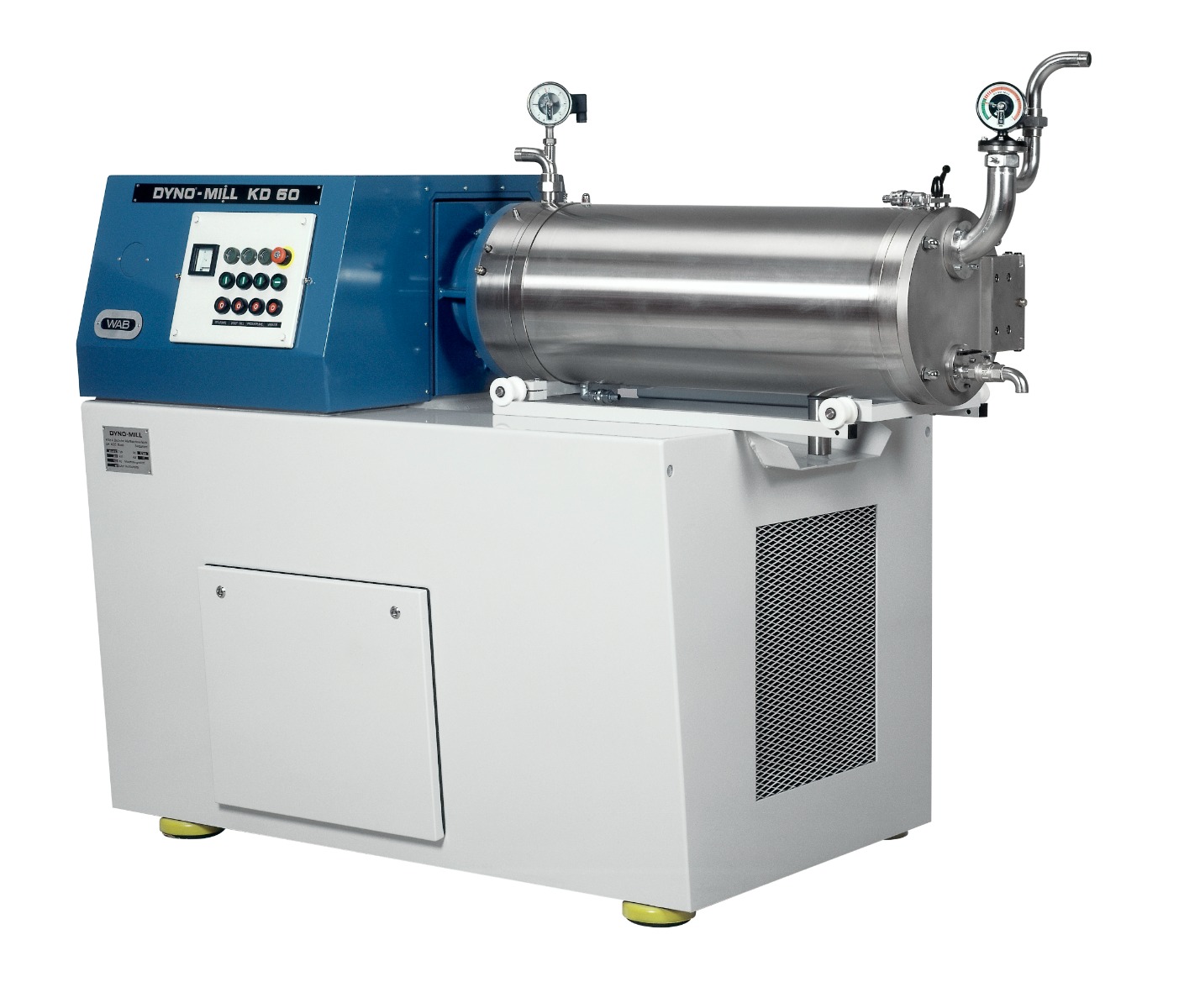

ENQUIREDYNO-MILL KD Agitator Bead Mill – The Ultimate All-Rounder
The original DYNO-MILL KD agitator bead mill from WAB-GROUP has established itself as a true all-rounder in the industry. For decades, it has been trusted across a wide range of applications, thanks to its continuous enhancement in material variety, quality, and, when needed, its ability to be tailored to meet highly specialized customer requirements.
With grinding chamber volumes ranging from 0.15 to 600 liters, the DYNO-MILL KD is designed to accommodate nearly all types of grinding media materials, making it a versatile choice for diverse processing needs.
Functionality

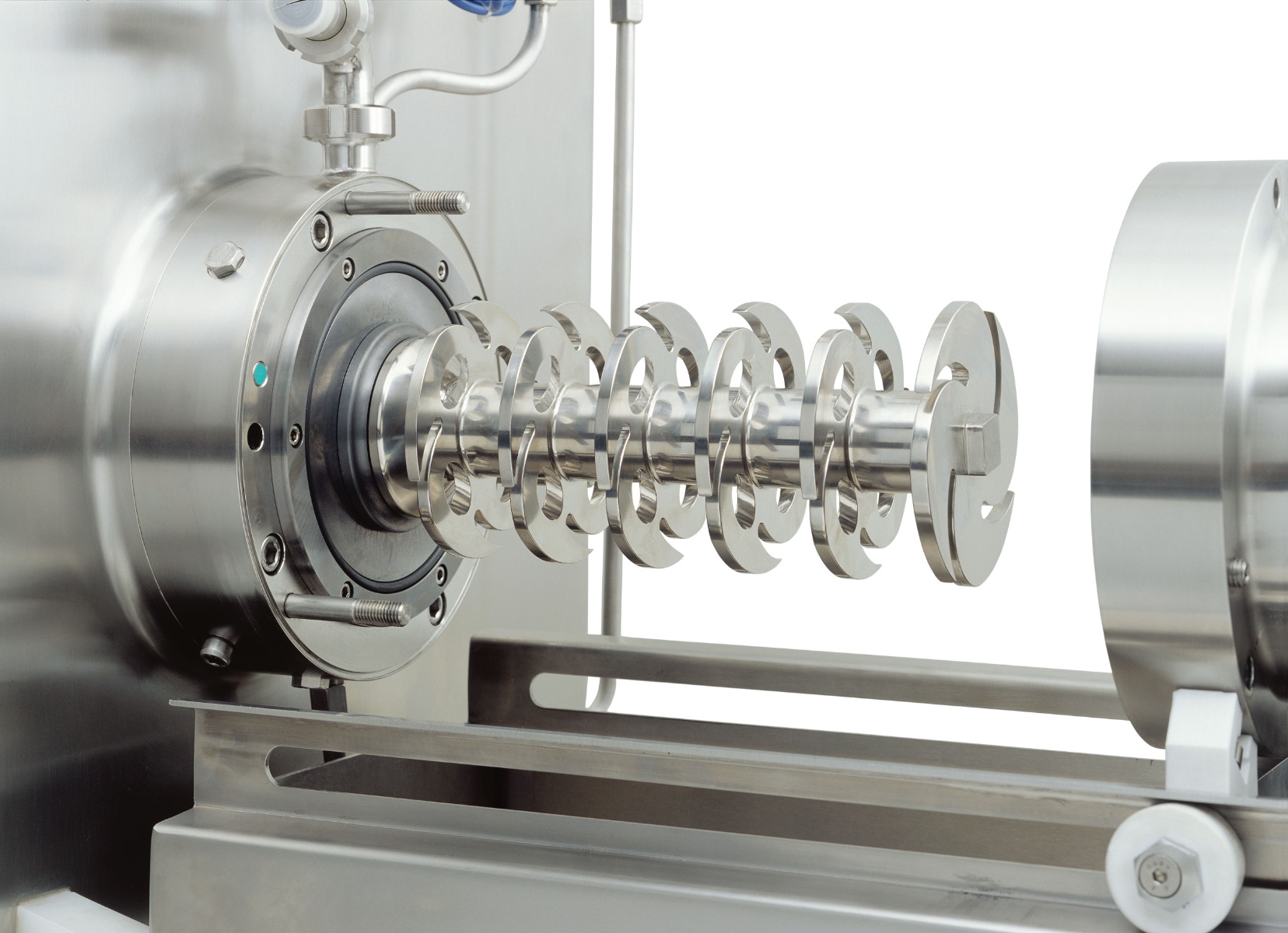

In the DYNO-MILL KD disc mill, specially shaped DYNO agitator discs are symmetrically arranged on the agitator shaft within the horizontal grinding chamber. These discs effectively transfer the kinetic energy needed for grinding to the grinding media, ensuring efficient processing. These disc mills deliver exceptional grinding results, especially in passage mode, when paired with the appropriate process parameters.
The design of each machine model is tailored to its specific grinding chamber volume. Models DYNO-MILL KD 20 to DYNO-MILL KD 60 can be equipped with either a dynamic friction gap separator or a screen separation system, providing flexibility to meet various operational needs.
