Three-Tec: ED 20 / ED 20 B Feeding Systems

Volumetric Single Scroll Feeder

ENQUIRE

Enquire

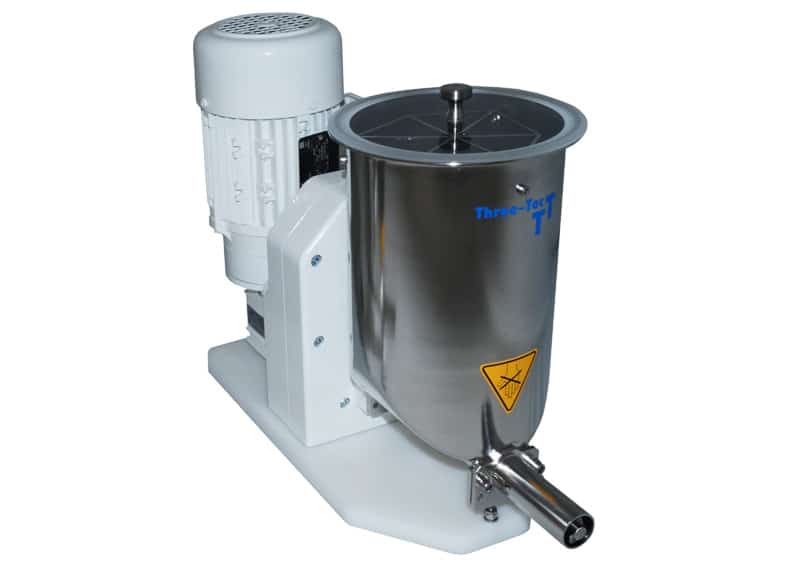

The ED 20 and ED 20 B volumetric single-screw feeders with and without discharge aid/bridge breaker, with intervention protection and horizontal or vertical discharge pipe are particularly suitable for feeding free-flowing products such as free-flowing powder, flakes, fibers and granulates up to 3 mm particle size.

Key Features

Throughput with AC three-phase motor 9.6-208 l/h
Throughput with servo motor 0.4-277 l/h
Ø Metering tools 20 mm
Weight ED 20: 15 kg, ED 20 B: 25 kg (depending on the version)
Dosing hopper capacity 4.5l
Additional funnel 12 l, 25 l, 50 l or according to customer requirements
Speed with AC three-phase motor up to 560 min-1 (depending on gearbox)
Speed with servo motor 4-750 min-1

Downloads

More Information

More Information
Inquire Only Yes
Manufacturer Three-Tec
Category Material Handling, Material Processing
