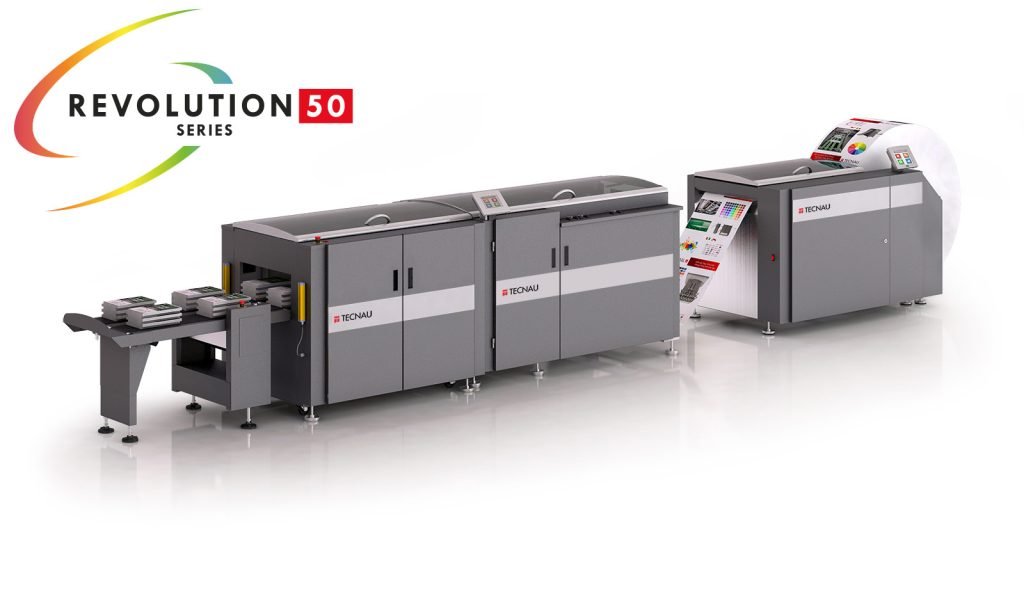

TECNAU Revolution50: Stack 5251L AutoSetup
Change between applications with no manual intervention.
ENQUIREChange between applications with no manual intervention. Revolution 50 AutoSetup enables fully automated job changeovers for full-bleed applications, reading a 2D Datamatrix to support changes in imposition (among 1-up, 2-up, 3-up and 4-up) and sheet lengths with no touchpoints.
Automated features enhance productivity, minimize setup times and reduce labor, making the system particularly well-suited for commercial and direct mail printers.
Key Features
| Speed (Max) | up to 525 ft/min – 160 m/min |
| Paper Weight | 12# bond – 165# index, 40 – 300 gms, outside 60-250 gsm requires application review |
| Web width | up to 560 mm / 22″, up to 584 mm / 23″ upon request |
| Form Length | 148 – 762 mm – 5.8″ – 30″, below 203 mm (8”) with speed reduction |
| Strip cut | 6.4 – 25 mm – 1/4″ – 1″ |
| Offset | 15 mm – 0.6″ north/south |
| Imposition | 4-up upon request (requires application review), 1-up, 2-up, 3-up |
The Revolution 50 AutoSetup system offers fully automated job changeovers for full-bleed applications, using a 2D Datamatrix code to adjust imposition (1-up, 2-up, 3-up, or 4-up) and sheet lengths automatically, eliminating operator touchpoints. These automated capabilities boost productivity, significantly reduce setup times, and minimise labour requirements, making it an excellent choice for commercial and direct mail printing environments.
Operators can easily transition between a wide range of applications, with the system requiring a much lower skill level compared to traditional, non-automated finishing lines. This makes the Revolution 50 AutoSetup particularly valuable for print companies addressing the challenges of a limited skilled labour pool.
The system comes equipped with standard Tecnau Revolution 50 cutline features, including a slide-out knife assembly for easy maintenance, a decurler for handling various media types, and a dynamic web aligner to ensure precision. Additionally, the optional Tecnau Connect IoT platform enables enhanced monitoring, remote diagnostics, and predictive maintenance. These features not only streamline application handling and reduce labour demands but also maximise press uptime and operational efficiency.
