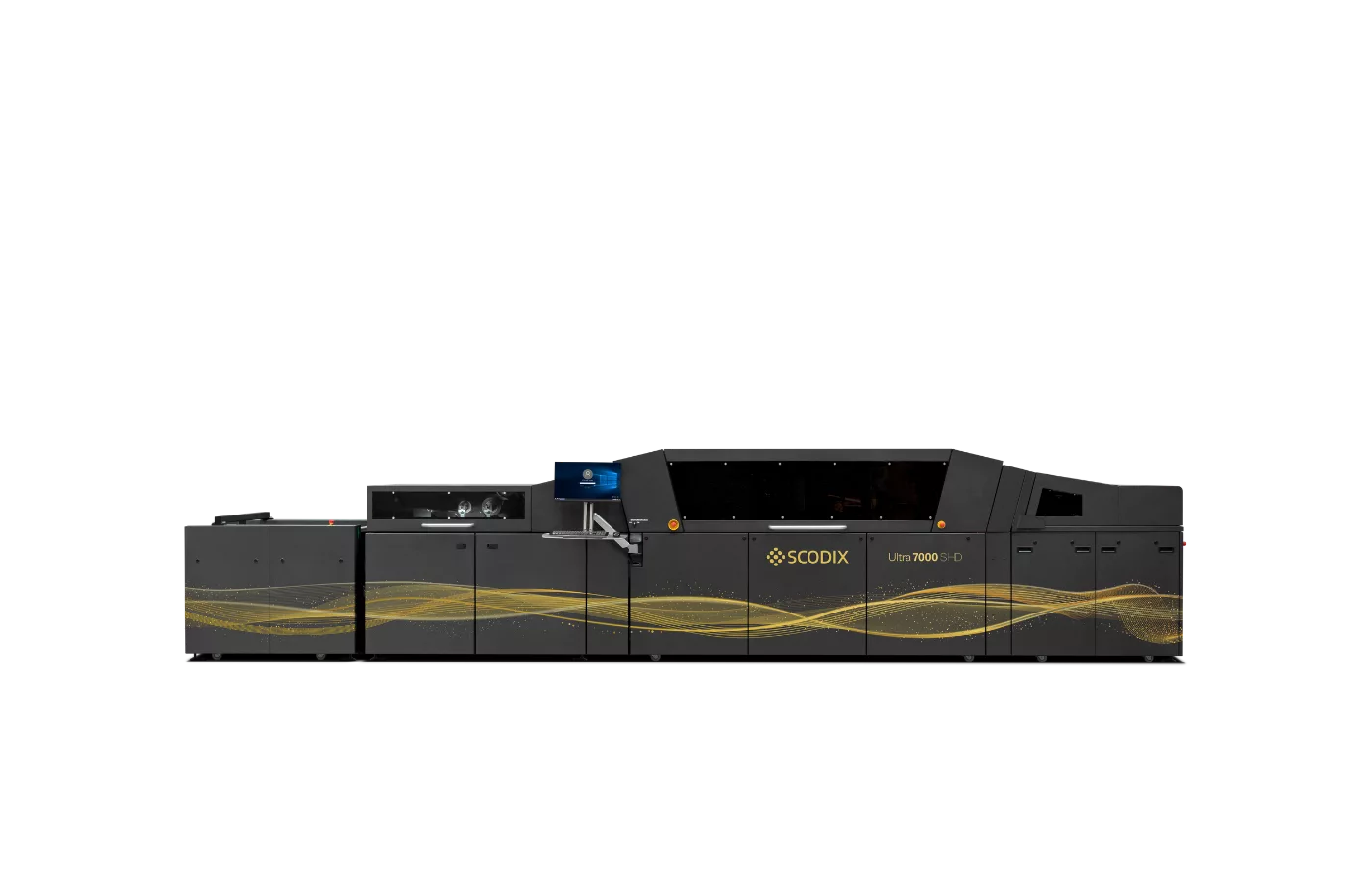

Scodix: Ultra 7000 SHD Embellishment Engine
The first digital embellishment solution engineered specifically for rigid and corrugated media
ENQUIREThe Scodix Ultra 7000 SHD is the first digital embellishment press purpose-built for rigid and corrugated media, delivering high-definition Scodix embellishment directly onto heavy-duty substrates. Designed to eliminate the constraints of traditional analogue tooling, the Scodix 7000 enables faster turnaround times, cost-effective short runs, and greater creative flexibility for print providers and converters.
With the Scodix Ultra 7000 SHD, materials including Dibond, aluminium, acrylic, Forex, and corrugated board can be transformed with premium tactile embellishment effects that add depth, texture, and visual impact. This advanced digital embellishment technology opens new opportunities for brands and printers looking to elevate applications that have traditionally relied on flat, conventional printing.
Need to know specs:
B1/41″ Format
Certified Sustainable
Key Features
| Media Format Max | 1,060x760 mm/41.7x30 in |
| Media Format Min | Paper: 420x297 mm/16.5x11.7 in Rigid / corrugated: 600x297 mm/23.7x11.7 in |
| Feeder / Stacker | Pallet for Feeder & Stacker |
| Media Handling | Scodix Twin-Tray™ technology (TT) |
| Print Resolution | Up to 2,540x450 DPI |
| Image Format | 1,000x700 mm/39.3x27.5 in |
| Productivity (Rigid) | Up to 780 SPH (545 m2/h) B1 format |
| Procuctivity (Corrugated) | Up to 780 SPH (545 m2/h) B1 format |
| Productivity (Paper) | Up to 1310 SPH B1 format |
| Media Thickness | Up to 4.5 mm / 4,500 microns |
More Specification Details
| Feeder | For rigid / corrugated: up to 575 mm For paper (135 gsm): pallet, up to 2,300 |
| Stacker | For rigid / corrugated: up to 575 mm For paper (135 gsm): pallet, up to 2,300 |
| Foil Roll Width | Min - Max: 50-720 mm/1.97–28.34 in |
| Foil roll Size (Max) | Diameter 300 mm (11.8 in), Length 2,000 m (2,187 yd), Core 77 mm (3 in) |
| Number of Simultaneous Foil Rolls | Up to 6 Rolls |
| Polymer Switch | Automatic polymer switch system |
| Compatibility | Digital and offset |
