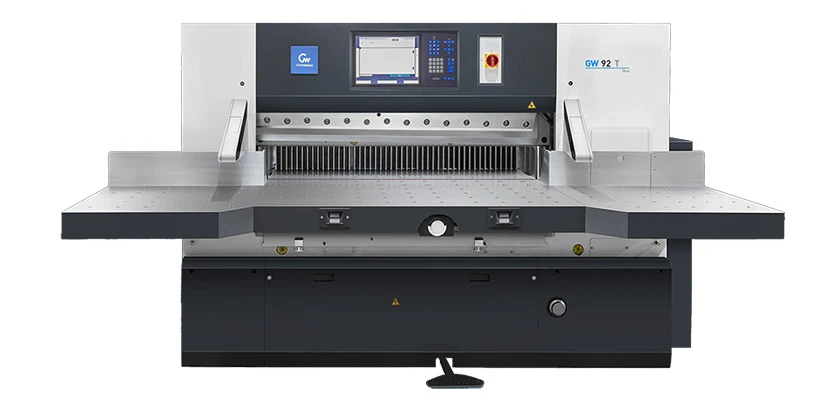

GUOWANG: GW92T Paper Guillotine
Paper Cutting machine in 92cm (920mm) Format
ENQUIREHigh-precision paper feeding structure: High-precision, high-rigidity frame-type paper-feeding mechanism equipped with linear guides and high-precision, backlash-free ball screws to guarantee accurate paper positioning for precise guillotine cutting.
Reliable power supply: The computer control unit is powered by a Mean Well (MW) switching power supply, ensuring stable operation, protecting the guillotine’s computer control system and preventing damage caused by unstable power input.
Chromium-plated platform: The chromium-plated work platform provides a durable, low-maintenance surface for guillotine cutting, reducing maintenance requirements and extending service life.
Efficient cutting: The high-efficiency double-worm-gear drive structure improves guillotine cutting productivity, enabling a cutting rate of up to 45 cycles per minute
Specification
| Cutting size | 920*920 (mm) |
| Cutting height | 130 (mm) |
| Cutting speed | 45 (TIMES/MIN) |

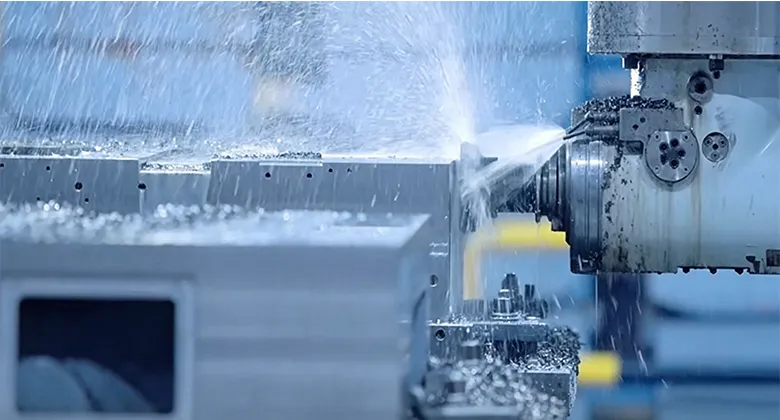

High Quality Manufacturing
100% of the guillotine’s core components are machined in-house, supported by more than 100 high-precision CNC machines and Hexagon coordinate measuring machines. From side frames and crankshafts to gripper bars, every component is manufactured to micron-level precision, delivering the long-term stability and accuracy expected from a high-performance industrial guillotine.
- 100+ high-precision CNC machines
- Hexagon coordinate measuring technology
- 100% of core guillotine components manufactured in-house

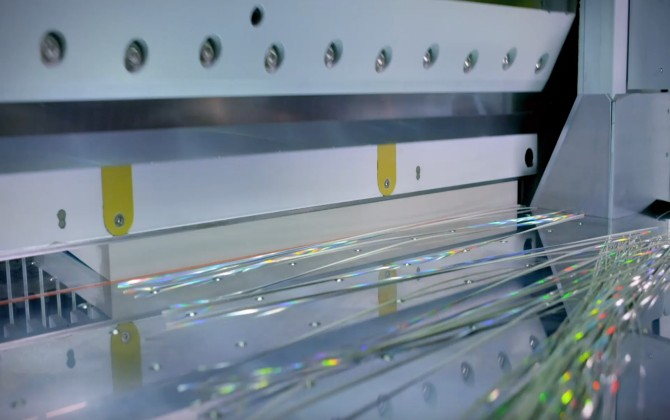

Mirror-Like Guillotine Cut
The precision-ground guillotine blade, combined with a dual-guide-rail thrust stop system, delivers a clean and highly accurate cut. The resulting surface is smooth and burr-free, producing a high-quality semi-finished product ready for subsequent processes such as folding and gluing.
- Precision-ground guillotine blade
- Dual guide rails for accurate cutting
- Smooth, burr-free cut surface

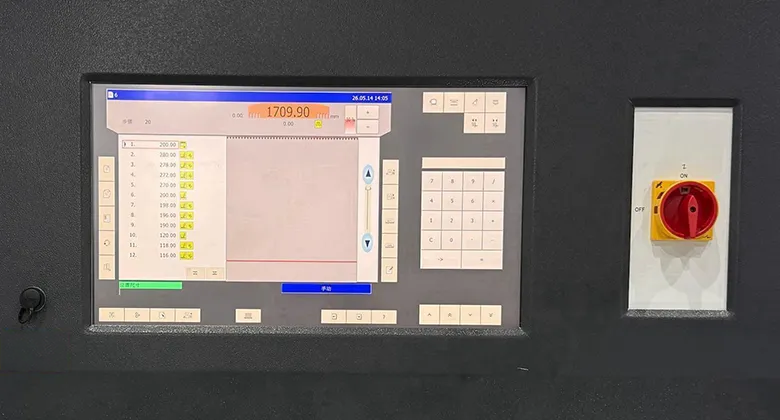

Programmable Guillotine Precision
A servo-driven back gauge positions material quickly and accurately, controlled through a 19-inch colour touchscreen. The system stores up to 99 programs, with each program capable of holding up to 6,464 cut positions. Repeat guillotine cutting jobs can therefore be recalled with a single touch, eliminating the need for repeated programming.
- 19-inch colour touchscreen
- Programmable cut positions
- Servo-driven back gauge
Dual Guillotine Safety Protection
An infrared light curtain continuously monitors the guillotine cutting area, while two-handed operation buttons keep the operator’s hands safely away from the blade. Together, these systems provide dual protection and meet CE safety requirements, helping create a safer working environment for guillotine operators.
- Infrared safety light curtain
- Two-hand operation control
- CE-compliant safety system
