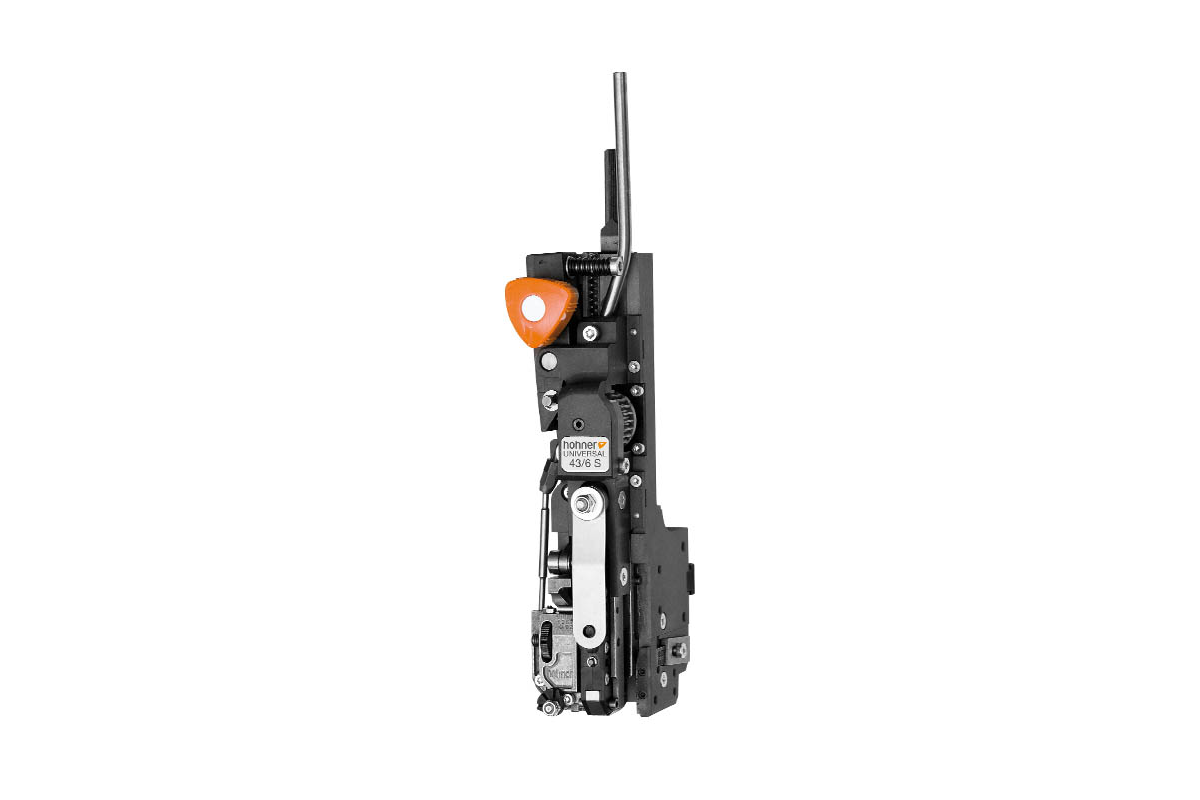

Hohner Universal 43/6-S Narrow Stitching Head
Narrow, universal stitching head for tight spaces
Manufacturer Name: Hohner
Manufacturer Code: Universal 43/6-S
ENQUIRE
The HOHNER product portfolio includes a comprehensive range of high-quality narrow stitching heads that differ according to where they are used, and are installed wherever maximum precision and productivity are required. HOHNER narrow stitching heads are appreciated by postpress professionals all over the world because of their legendary quality and reliability.
The Universal 43/6-S - the stitching head with a sensational, minimum distance between stitch centres reduced down to 43 mm, as well as:
-
-
- Operator friendliness, manageability & accessibility (for example fastening from the front)
-
- Toolless wire length and cutting box adjustment for different thicknessess in seconds
-
- Extremely easy conversion between standard and loop stitching with exchange parts sets
-
- 14.000 stitches per hour
-
- Minimum distance between stitch centres down to 43 mm
-
- Now more wear resistant with redesigned parts
Specifications (Standard Stitching)
Max. stitching thickness
6 mm
Min. distance between staples (standard)
43 – 52 mm
Crown width
12 mm
Round wire
No. 24 – 26 (0,6 – 0,5 mm) or No. 26 – 28 (0,6 – 0,5 mm)
Optional exchange parts
For loop stitching or round wire No. 24 – 26 (0,6 – 0,5 mm)
Specifications (Loop Stitching)
Inner diameter of loop
6 mm (or 8 mm)
Max. stitching thickness
L6 = 3 mm L8 = 2 mm
Min. distance between staples
48 – 54 mm
Optional exchange parts
for loop stitching 6 mm or 8mm
Round wire
No. 24 – 26 (0,6 – 0,5 mm) or No. 26 – 28 (0,5 – 0,4 mm)
Manufacturer Code: Universal 43/6-S
