Duran Omega Magnus
High Speed Corrugated Folder Gluer

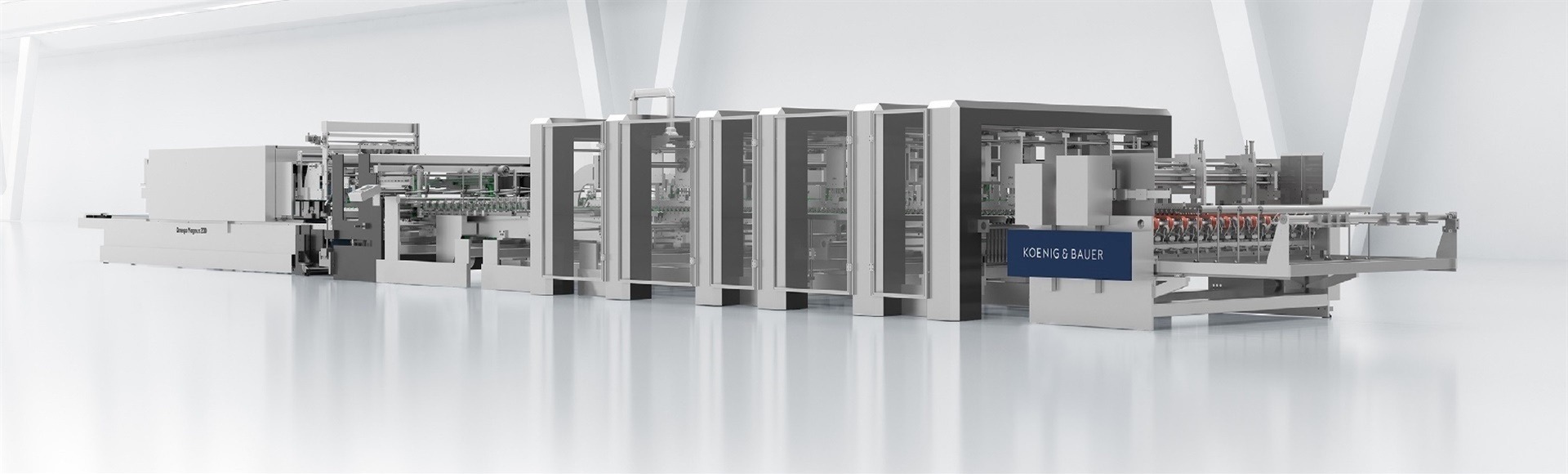

ENQUIREThe OMEGA Magnus is a specialty folder-gluer intended for corrugated production and available in three sizes: 170 – 210 – 230.
The Magnus has a maximum belt speed of 300 metres per minute and is capable of processing E, B, C and double wall board, utilising a servo back folding system with a single finger for 4 and 6 corner styles, as well as being able to handle standard straight line and auto bottom functions.
Key Features
| Sizes Available | 170 - 210 - 230 |
The OMEGA Magnus is a sturdy folder-gluer constructed with 3 cm solid steel frames. Its feeder has an extendable rack gear for oversized blanks and it also has a vacuum transfer system. Equipped with belt adjustment on 10 feeder belts, the Magnus has dual feed gates with extra pile supports, ensuring accurate feeding.
Pre-fold and final fold sections incorporate pneumatically controlled and independently driven upper carriers, a long final fold unit, motorised adjusting folder belts, a pneumatic squaring device at the final fold for squaring crash lock bottom boxes, delivery and stacker sections with heavy duty trombone unit, and a down stacker which is a rear box squaring device with front edge control gauges on the stacker. All carriers on the Magnus are motorised.
Like all OMEGA’s, the Magnus is a user-friendly machine which features carrier motor control buttons on both sides, a colour monitor on the feeder for surveying delivery, an additional control board at the end of delivery, and remote control. The OMEGA Magnus is also available in a ‘memory’ version.
