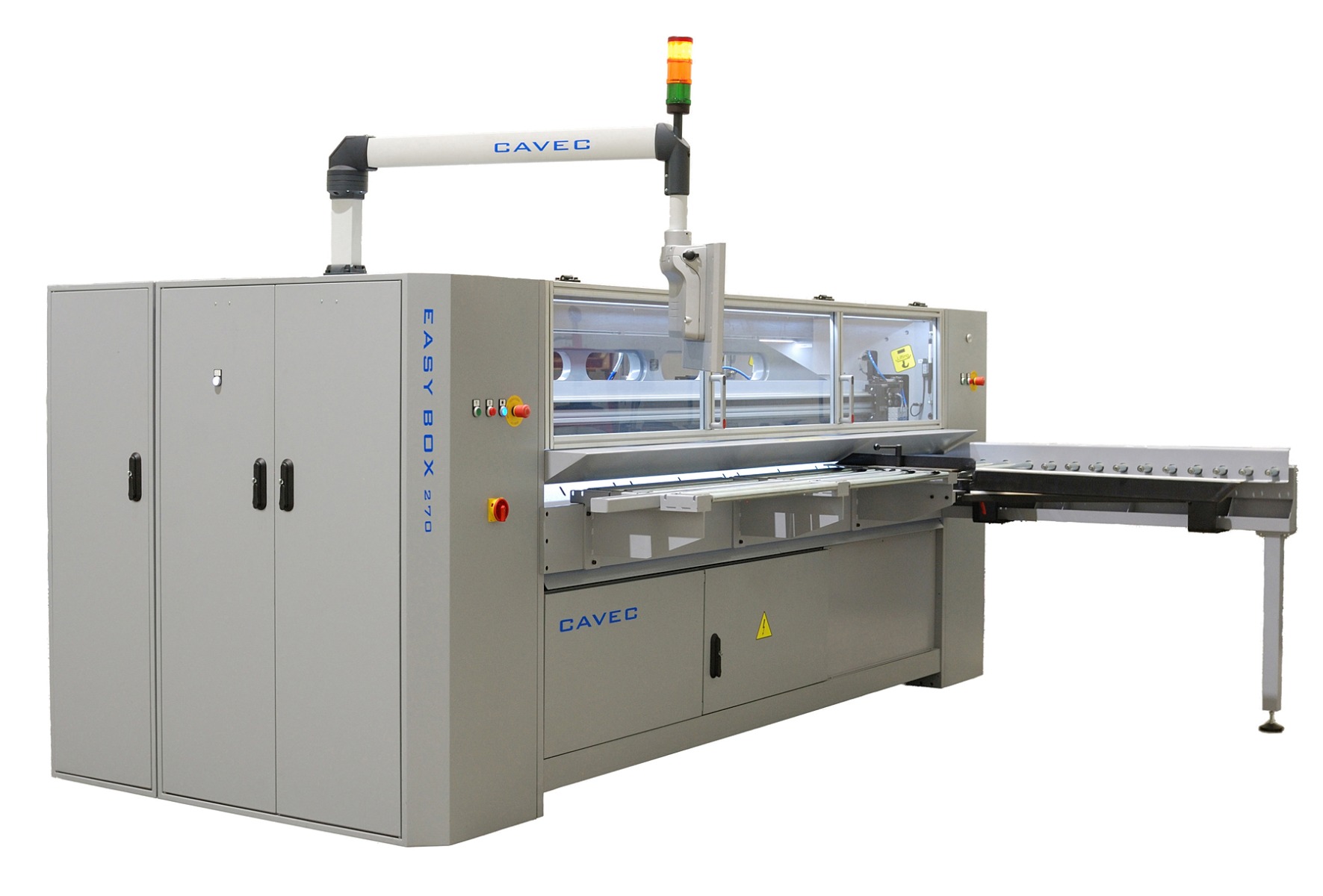

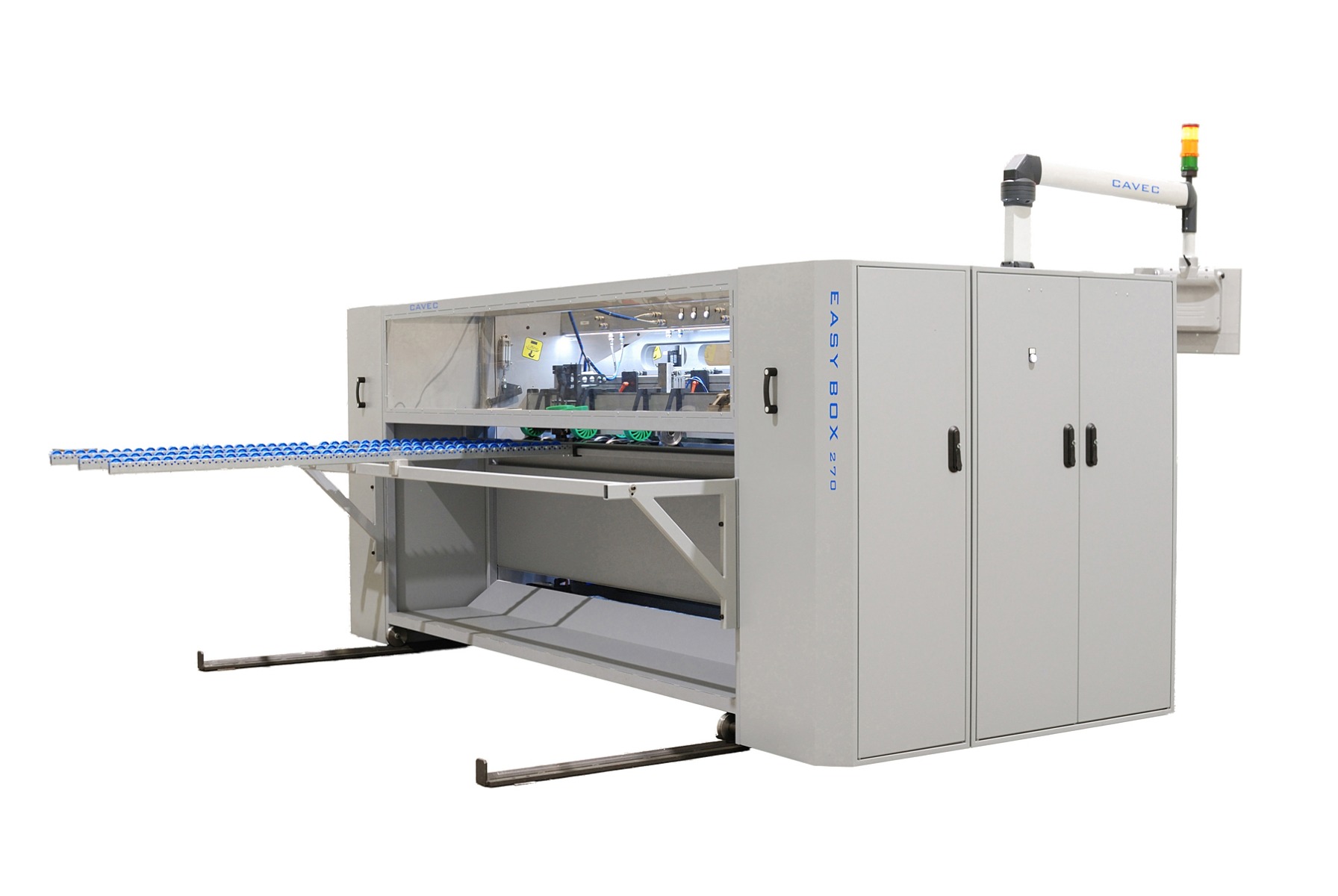

Cavec: Easy-Box 270 Corrugated Box Maker
On demand, single or short run corrugated box maker
ENQUIRECavec’s corrugated box makers use digitally controlled cutting, creasing and slotting to turn plain corrugated sheets into finished boxes without fixed tooling. The operator selects the box style and dimensions on a touchscreen, and the servo-driven system adjusts automatically, making the technology ideal for fast changeovers and efficient short-run production. Because designs can be stored and recalled instantly, the machines switch between jobs quickly and maintain consistent quality.
This concept allows a business to produce corrugated boxes on demand instead of holding large inventories. It reduces waste, speeds up workflow and removes the delays normally associated with outsourcing box manufacturing. Automated control ensures accuracy in every short-run box order, while the Industry 4.0 features support smart diagnostics, job scheduling and data tracking. Overall, Cavec’s technology provides a flexible, responsive and cost-effective solution for companies needing a reliable short-run corrugated box maker that delivers speed, precision and efficient custom box production.
Performance
More than 120 FEFCO code designs + more than 40 specially developed designs.
Production speed
A: single carton: up to approx. 550 sheets/hr
B: multiple cartons in one pass: up to approx./ 2,500 sheets/hr and more, depending on the design.
Sheet dimensions and thicknesses
Up to 2,700mm wide, 10,000mm long and 16mm thick, 3.5 and 7-ply paperboards.
Profitability/flexibility
From 1 carton/order.
J-I-T Manufacturing
Production from leftover sheet: because the untreated part of the sheet remains intact, it can be used for further production.
How it works:
A manually inserted sheet is fed into the machine, captured by a pull shaft, and then automatically, at high speed and accuracy, transported and positioned by a servo drive.
Individual machining operations are performed with tools that are controlled by the SPS program
The execution of subsequent operations is carried out automatically by means of individual workstations, without time starts, exactly according to the dimension and function entered. This results in high production speeds while maintaining very high dimensional accuracy.
Entering the relevant functions, as well as dimensions, is done using an industrial computer with a touch screen. Repeated orders (programs) can be stored in the computer's memory.
The current status of the machine, as well as the program entered, are displayed and monitored on a color touch screen. This allows the machine operator to easily operate the machine and continuously check individual functions.
