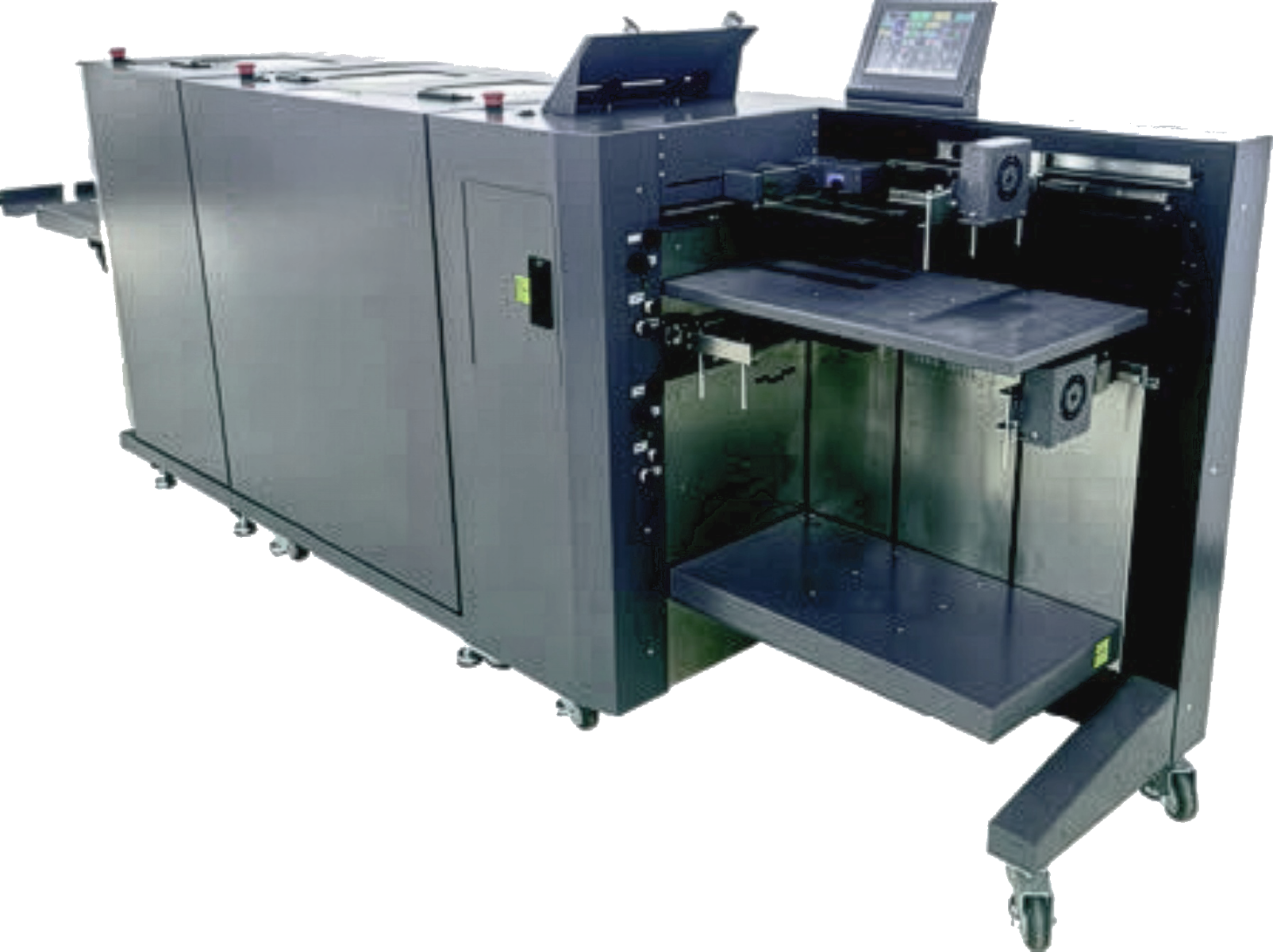

AUSJETECH: PT33 MFB Booklet Maker
Multi-function booklet maker with inline creasing, perforating, stitching, folding and face trimming.
ENQUIREThe PT33 MFB is a high-performance bookletmaker designed to streamline digital print finishing. Combining stitching, folding and face trimming with inline creasing and optional perforating, this versatile booklet making machine produces up to 3,000 booklets per hour. Its patented progressive crease function helps prevent toner cracking on heavier-weight covers, delivering durable booklets with a professional, square-back finish.
Stitching: 2–25 sheets (80 gsm); 2 Deluxe Stitcher Heads; steel wire (5 lb spool capacity).
Cutting: Up to 48 sheets of 80 gsm paper plus 2 covers of 128 gsm; 2–20 mm cutting strip width.
Accuracy: ±0.5 mm.
Automatic adjustment: Side/back guides and fold roller gap.
Operation: Touchscreen display, side and tail joggers, and standard output conveyor.
Specification
| Infeed size | 148.5 × 210 mm – 330 × 480 mm |
| Output size (saddle stitch) | 148.5 × 80 mm – 330 × 240 mm |
| Output size (side stitch) | 268 × 112 mm – 330 × 247 mm |
| Loading capacity – top bin | 100mm |
| Loading capacity – bottom bin | 350mm |
| Ultrasonic Double-feed detection | Standard |
| Crease bar | Standard (0.6 / 1.0 / 1.2 / 1.4 mm options) |
| Progressive crease | Standard |
| End-mark detection | Standard |
| Side blower / tail blower | Standard |
The PT33 MFB multi-function bookletmaker combines multiple print finishing processes in one automated system, helping print businesses produce professionally finished booklets efficiently and consistently. With a dual-stage feeder, heavy-duty stitching heads, integrated folding and face trimming, it is designed to support productive booklet making for commercial print environments.
Integrated booklet making and finishing
The PT33 MFB brings stitching, folding and face trimming together in one machine, with inline creasing and optional perforating capabilities. Its standard dual-stage feeding system can be supplemented by a manual bypass, providing flexibility for different production requirements. The machine processes sheets up to 330 × 480 mm and can achieve production speeds of up to 3,000 booklets per hour, depending on the job and materials used.
Progressive creasing for quality results
The patented progressive crease function creates a square-back booklet finish while helping to prevent cracking on heavier-weight covers. Inline creasing reduces the need to prepare sheets separately, making the PT 33MFB particularly useful for digital print applications where toner cracking can affect the finished appearance.
Flexible perforating options
Optional cross perforating, linear perforating and linear partial perforating extend the machine's capabilities beyond conventional booklet production. These functions allow additional finishing operations to be incorporated into the production process without requiring separate pre-processing steps for suitable applications. An optional barcode reader is also available.
Automated setup and alignment
Automatic centre alignment, adjustable side and back guides, and fold roller gap adjustment help simplify setup and maintain consistent results. Standard end-mark detection and side and tail blowers further support reliable sheet handling throughout production.
The PT33 MFB is a versatile booklet making machine for print providers looking to consolidate finishing processes, improve productivity and produce high-quality stitched booklets with a professional finish.
Options
| Perforation | Linear, Cross, Partial Linear |
| Automation | Barcode Reader |
