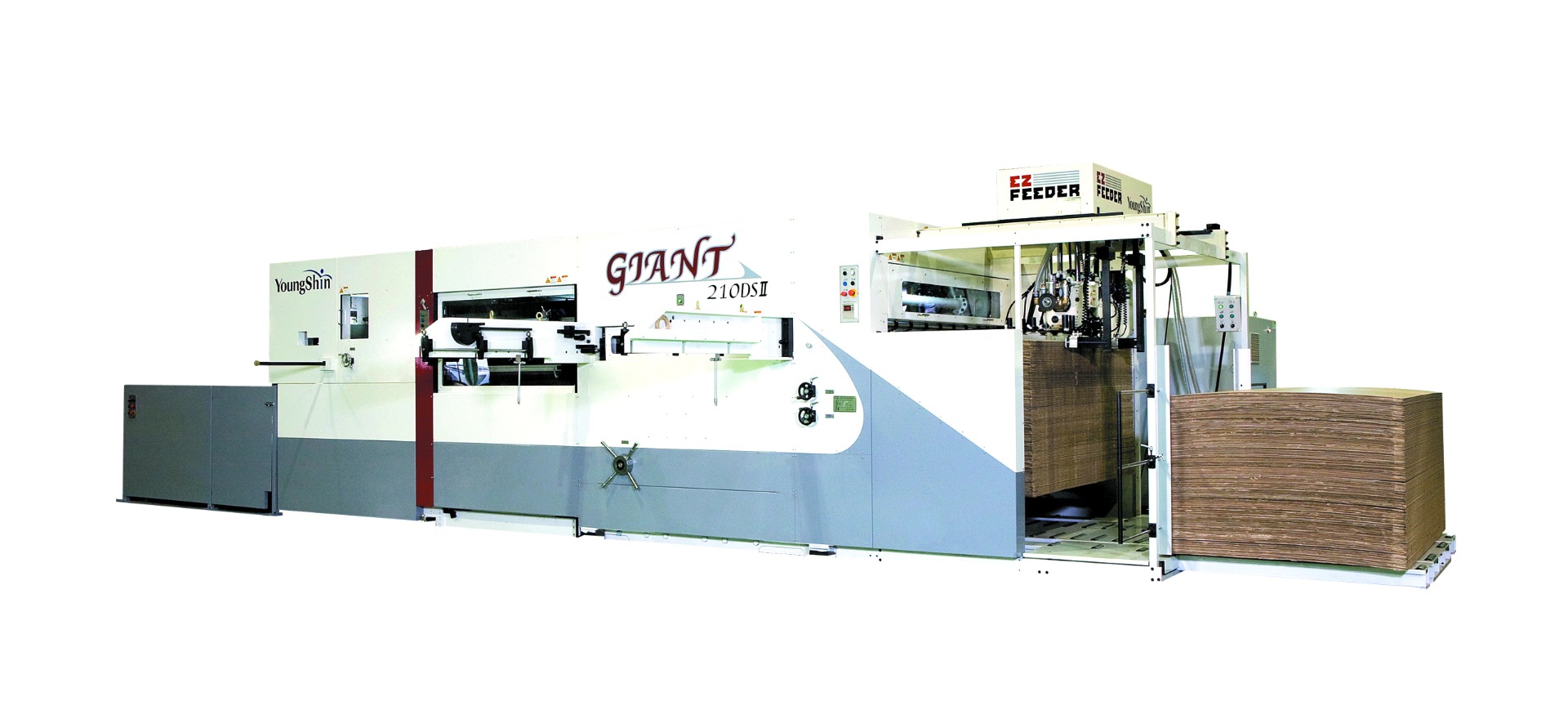

Young Shin: GIANT 210
Semi Automatic Die Cutter
ENQUIREThe Young Shin GIANT premier flatbed diecutter series incorporates both high-quality production and the integration of a fully-configured system for maximum productivity. The GIANT’s precise center line technology provides easy and rapid set up of the die board using the unit’s center block. Thin sheets feed smoothly and effortlessly with the GIANT’s enhanced feeding and conveying systems. The innovative air floating device allows easy withdrawal of the cutting plate for optimum operator efficiency. A variety of sizes are available to suit the needs of a wide variety of production environments. Young Shin’s EZ Feeder is available as an optional component of the GIANT series further enhancing productivity and profitability.
Optional Extras
| Option | Triple action stripping section |
| Option | Grip edge removal device |
| Option | Heating systems for easier cutting |
| Option | Batch or stack delivery |
| Option | Cutting plate air float removal device (Standard on 210 and 250 models) |
| Option | Diecutting Section: Chase turn-over for easy order change. |
| Option | Diecutting Section: Knuckle system for maximum cutting pressures. |
| Option | Diecutting Section: Center line system for quick order change. |
| Option | Diecutting Section: Soft plate system available. |
| Option | Diecutting Section: Stripping Section |
EZ-Feeder Specifications
Suction Feed:
Strong vacuum suckers and air separators ensure precise feeding.
Warped Sheet Guide & Front Lay Device:
Warped sheet device presses down sheet edge for even feeding into front lay assembly.
Sheet Separating Blowers:
Adjustable air pressure and position separates sheets.
Sheet Joggers:
Air cylinder jogging units keep sheets arrayed at rear and sides for enhanced feeding.
Feeder View:
Powered by chain transferring device and constant timing by clutch.
Man-Machine Interface:
Displays status of machine at all times for quick diagnosis.
EZ Feeder Control Panel:
Controls all electrical components related to the optional EZ Feeder, if installed.
EX Feeder Main Operation Box:
Controls the function of the EZ Feeder’s vacuum pump and feeder head movements and engages the feed drive.
